Description

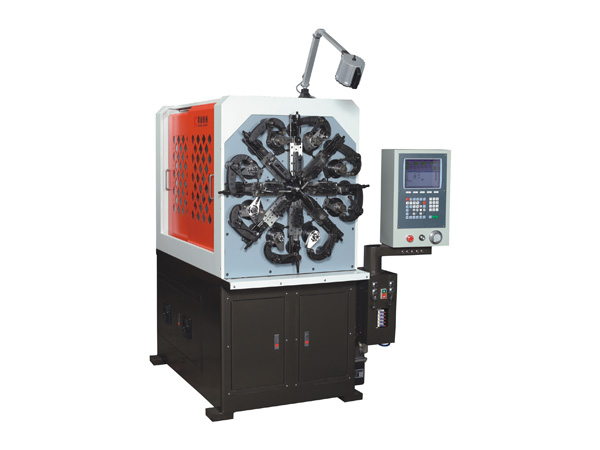

KCT-0520WZ 5 Axis CNC versatile spring rotating forming machine, referred to as the 20-type line processing machine, wire diameter φ0.3-2.5mm diameter, suitable for processing all kinds of precision compression spring, tension spring, torsion spring, single and double tower spring, flat wire spring, shaped spring and complex line of molded products, widely used in furniture, electrical appliances, lighting and electric cars, cars, kitchen utensils and dies etc..
Parameters
| 機 型 | Model | KCT-0520WZ |
| 軸 數(shù) | Axis Count | 5 Axis |
| 加工線徑 | Wire Size Range | φ0.3-2.5mm |
| 最大彈簧外徑 | Max Outside Diameter | 50mm |
| 最大送線長度 | Max Feeding Length | 無限(Unlimited) |
| 最大送線速度 | Max Feeding Speed | 120m/min |
| 最大生產(chǎn)速度 | Max Production Rate | 70pcs/min |
| 送線伺服電機 | Wire Feeding Servo Motor | 2.9kw |
| 凸輪伺服電機 | Cam Servo Motor | 2.9kw |
| 轉芯伺服電機 | Quill Servo Motor | 0.75kw |
| 轉線伺服電機 | Wire Rotation Servo Motor | 2.9kw |
| 卷曲伺服電機 | Spinner Servo Motor | 0.4kw |
| 機器尺寸 | Dimension(L*W*H) | 1500x1100x1900mm |
| 機器重量 | Weight | 1500kg |
| 電 源 | Power AC | 3-380VAC 50Hz |
Our company's KCT-0520WZ 5 Axis CNC versatile spring rotating forming machine adopts Taiwan CNC control system, using the Japanese SANYO servo motor and high precision bearings, the models of a total of five axes, respectively, camshaft, feeder axis, rotary mandrel, spool roll and crankshaft system through CNC code, respectively. The feeding line and cam drive system of synchronous control, can achieve 24 hours of precise operation. In addition, due to the high precision servo motor and computer control of the spring machine, we can easily produce the spring products with precise size and complicated angle by combining the servo rotation axis and the crimping shaft.
